ME2805 Series is a series of high-precision voltage detectors with a built-in delay time generator of fixed time developed using CMOS process. Internal oscillator and counter timer can delay the release signal without external parts

Highly accuracy： ±1%
Low power consumption：TYP 0.9uA (VDD=3V)
Detect voltage range ： 1.0V~6.5V in 0.1V increments
Operating voltage range：0.7V~7V

规格书下载原装现货授权代理联系我们

详细内容

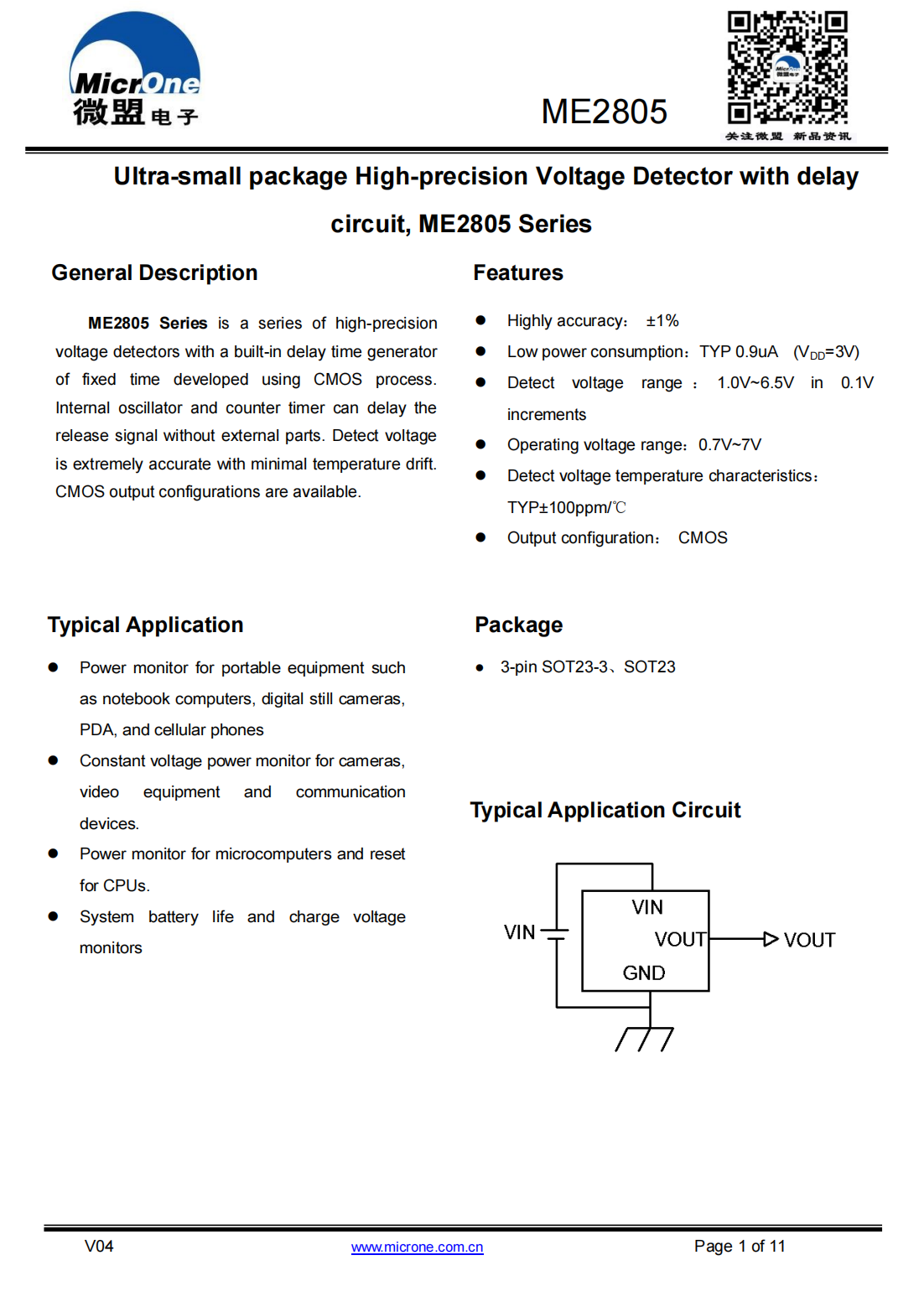

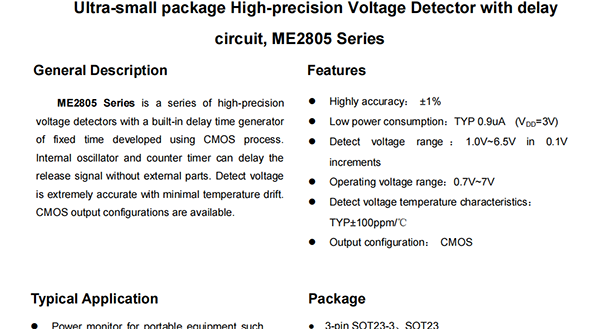

General Description Features

ME2805 Series is a series of high-precision voltage detectors with a built-in delay time generator of fixed time developed using CMOS process.Internal oscillator and counter timer can delay the release signal without external parts.Detect voltage is extremely accurate with minimal temperature drift.CMOS output configurations are available.

Highly accuracy：±1%

Low power consumption：TYP 0.9uA(VDD=3V)

Detect voltage range：1.0V~6.5V in 0.1V

increments

Operating voltage range：0.7V~7V

Detect voltage temperature characteristics：TYP±100ppm/℃

Output configuration：CMOS
