ME6210A40PG_500mA CMOS低压差线性稳压器

ME6210 series are low quiescent, low-dropout linear voltage regulators.ME6210 series are based on the CMOS process and allow high voltage input .The allow operation voltage as high as 18V

High output accuracy：± 2%
Input voltage：1.8V ~ 18 V
Output voltage：1.5V ~ 5.0V
Ultra-low quiescent current (Typ. = 1.5 µ A)

规格书下载原装现货授权代理联系我们

详细内容

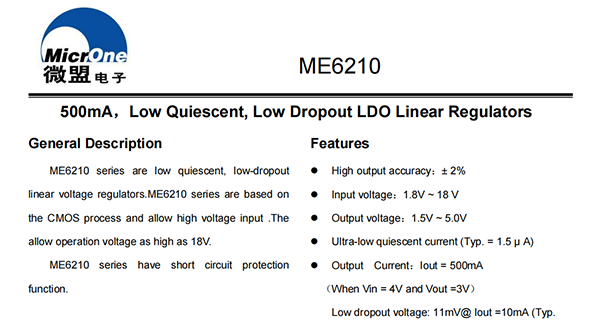

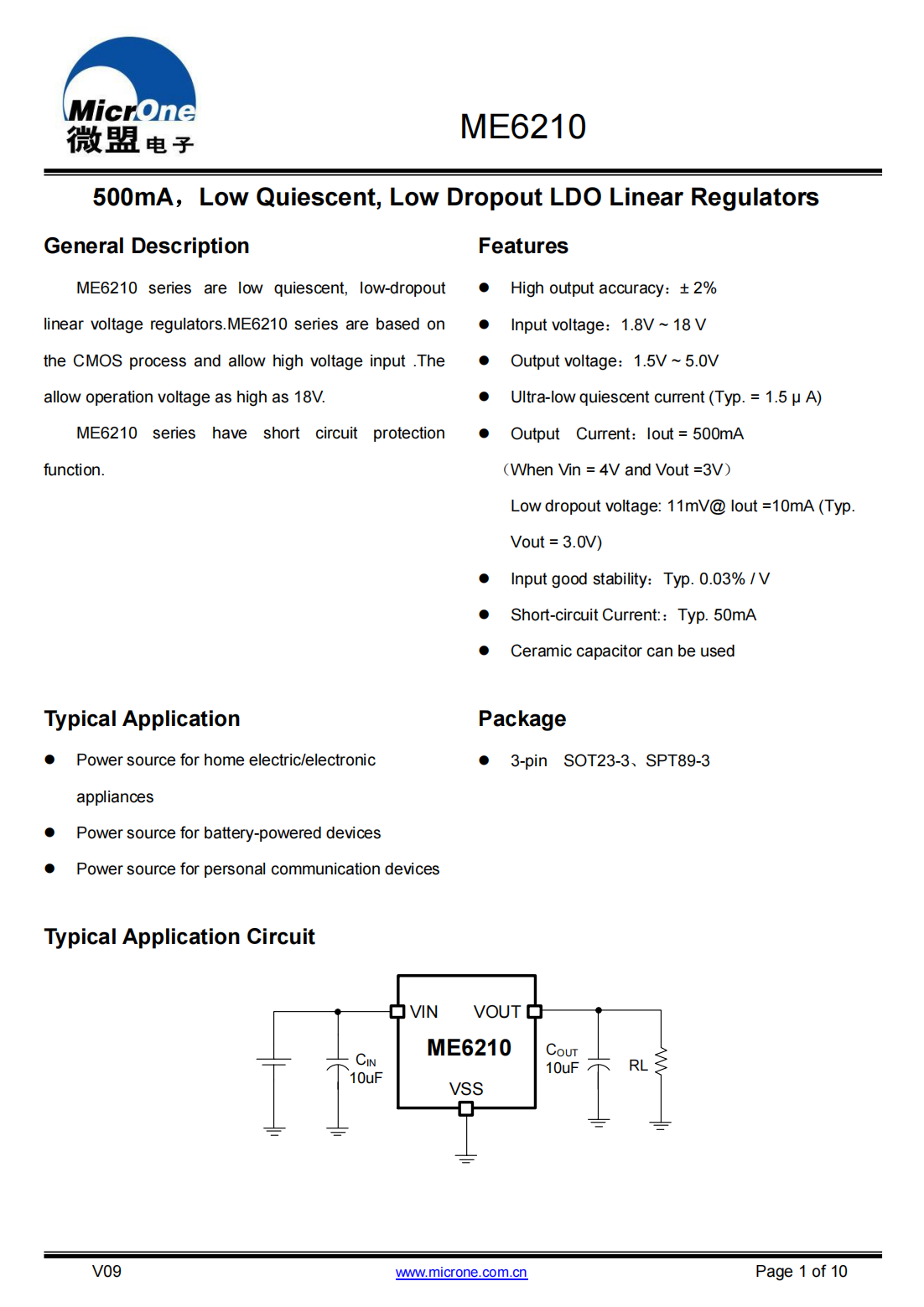

General Description

ME6210 series are low quiescent,low-dropout linear voltage regulators.ME6210 series are based on the CMOS process and allow high voltage input.The allow operation voltage as high as 18V.ME6210 series have short circuit protection function.

Features

High output accuracy：±2%

Input voltage：1.8V~18 V

Output voltage：1.5V~5.0V

Ultra-low quiescent current(Typ.=1.5µA)

Output Current：Iout=500mA（When Vin=4V and Vout=3V）Low dropout voltage:11mV Iout=10mA(Typ.Vout=3.0V)

Input good stability：Typ.0.03%/V

Short-circuit Current:：Typ.50mA

Ceramic capacitor can be used
